ZEUGMA monoplace hyperbaric chamber

Experience hyperbaric oxygen therapy in a chamber designed for comfort, visibility, and personal space. ZEUGMA combines medical-grade technology with precise pressure control and efficient oxygen delivery through the BIBS mask, creating an optimal environment for every session.

Smart, user-friendly operation

All components are designed for ease of use and require minimal maintenance.

Adjustable RGB lighting creates a relaxing and personalized atmosphere.

Continuous Monitoring

Ventilation System

Advanced systems allow constant communication and patient tracking.

Automatic air circulation ensures fresh air inside at all times.

Patient Vitals

Pneumatic Controls

Supports vital sign monitoring, including EEG, ECG, TCOM, and blood pressure.

Fully pneumatic operation requiring only a compressed gas source.

Entertainment System

Backup Power

Features large-screen TVs, tablets, and customizable additions for user comfort.

A discrete power source maintains communication during power outages.

LED Lighting

Simple Operation

Enhance recovery with hyperbaric oxygen therapy.

Breathe in pure oxygen at optimal pressure to support healing and boost overall wellness.
HPOTECH’s advanced chambers are designed for precise pressure control, ensuring efficient oxygen delivery for maximum therapeutic benefits.

Project gallery

Discover recent installations featuring the ZUEGMA system.

Photo 22.11.2023, 16 20 46.jpg

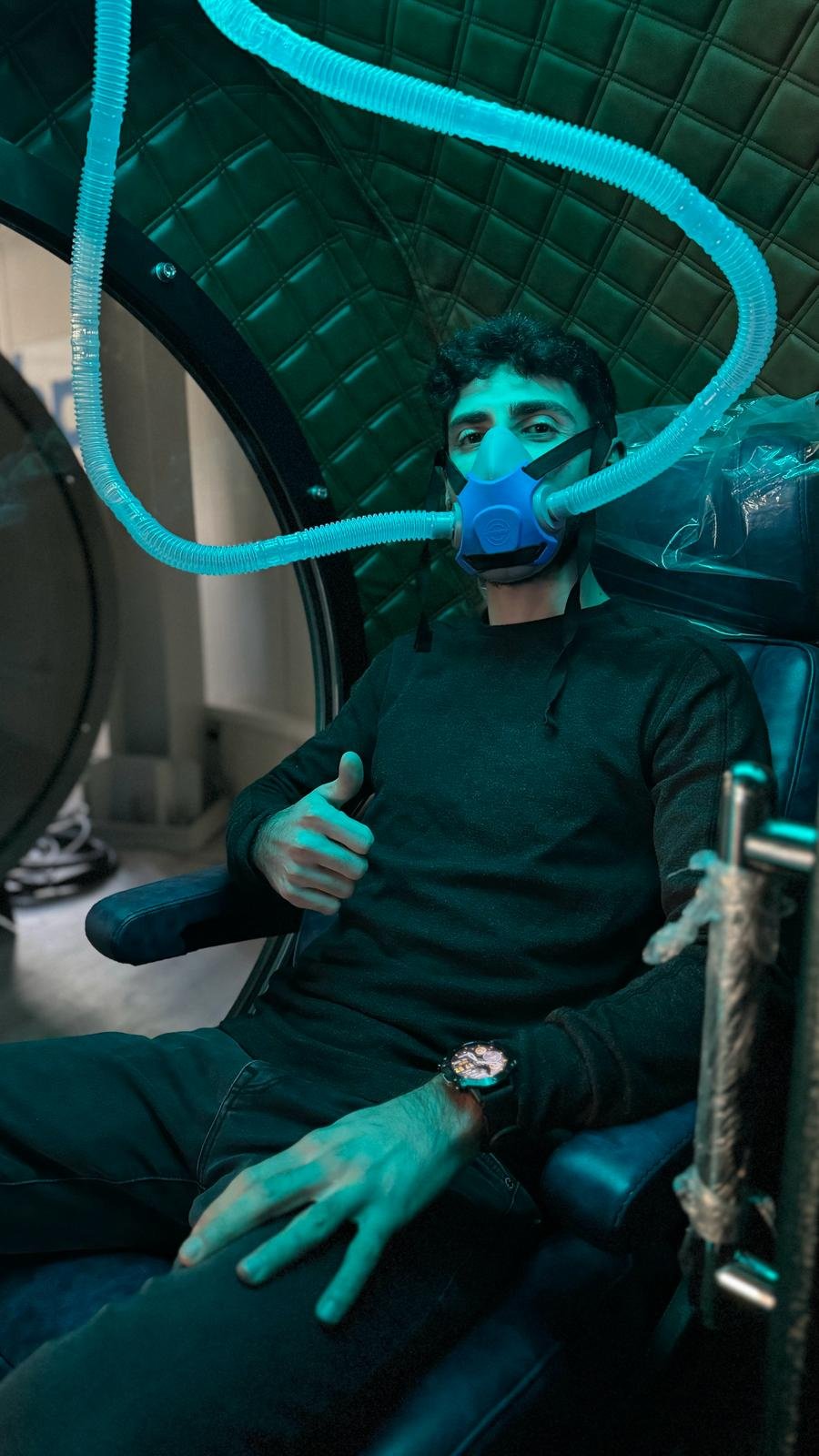

WhatsApp Image 2024-02-20 at 17.02.50_78eca6ac.jpg

The Zuegma System Components

Hyperbaric Chamber

(1 Seat)

A single-seat capsule designed for breathing pure oxygen under controlled pressure levels of up to 2.0 ATA, providing an optimal environment for hyperbaric oxygen therapy (HBOT).

Air Compressor

(1 Unit)

The chamber is pressurised with breathable air from the Air Compressor, which, along with oxygen, is a key factor in ensuring the effectiveness of HBOT.

Oxygen Concentrator

(1 Unit)

Supplies high-purity oxygen through the Built-In Breathing System (BIBS), ensuring each user receives a continuous flow of oxygen, with one concentrator per person.

Air Cooler

(1 Unit)

An Air Cooler is connected to the system to maintain fresh air inside the chamber and regulate the temperature for a comfortable treatment environment.

Advanced Monitoring & Safety Systems

HPO TECH systems feature advanced sensors that continuously track and manage key parameters throughout each therapy session. These systems enable healthcare providers to monitor patient responses in real time, adjust treatment protocols as needed, and evaluate therapy progress—ensuring both safety and effectiveness.

Automation System

The Automation System controls the chamber and runs sessions automatically. It includes automation software, an industrial PLC, sensors, valves, and a PC.The PLC is the brain of the system. It monitors and controls all connected parts like sensors and valves. The exact setup depends on the customer’s needs.

Real-Time Monitoring and Session Tracking

Sensors collect real-time data to show session progress and user information. The system tracks key details such as pressure, oxygen levels, temperature, humidity, patient vitals, and how long the session lasts. This helps keep patients safe and supports good decision-making by the medical team.

Internal Control Panel

Precision control for hyperbaric oxygen therapy.

Manage pressure regulation, monitor real-time patient data, and maintain direct communication with integrated controls. Equipped with manual overrides and an emergency stop system, this panel ensures operational safety and efficiency for a seamless hyperbaric experience.

  • Internal Control Tablet

    Seamless touchscreen control at your fingertips. Adjust pressure, set session parameters, and lock the chamber door with ease. Monitor real-time data, including pressure, session duration, and vital metrics, all in one intuitive interface.

  • Chamber Pressure Indicator

    Reliable analog pressure monitoring.
    A mechanical dial provides quick and accurate readings of pressure variations inside the chamber.

  • Internal Cooler

    Temperature control at your command. Adjust the chamber's temperature via the control tablet to maintain a comfortable environment during pressurized HBOT sessions.

  • Internal Intercom

    Clear, continuous communication.
    Maintain open voice connection with external operators, ensuring crystal-clear communication throughout the session.

  • Emergency Stop Button

    Immediate safety control. Instantly halt the session and rapidly reduce chamber pressure to a safe level in case of emergency.

  • UV-C Light Disinfection

    Ensuring a sterile environment.The chamber is equipped with UV-C light disinfection to effectively inactivate viruses and bacteria on surfaces and in the air, maintaining a clean and safe interior.

  • Occupancy Sensor

    Safety and disinfection in sync.The sensor automatically disables the UV-C light when someone enters the pressure chamber, ensuring both effective disinfection and user safety.

External Control Panel

Precision control for hyperbaric oxygen therapy.

Manage pressure regulation, monitor real-time patient data, and maintain direct communication with integrated controls. Equipped with manual overrides and an emergency stop system, this panel ensures operational safety and efficiency for a seamless hyperbaric experience.

  • External Control Tablet

    Regulate pressure, monitor real-time data, and communicate seamlessly with integrated controls. With manual overrides and an emergency stop, ensure safety and efficiency in every session.

  • Manual Compression Valve

    Fine-tune pressure adjustments with precision. Manually compress and decompress independently of the automated system, ensuring greater flexibility and reliability in hyperbaric operations.

  • Manual Decompression Valve

    Precise control over decompression.
    Independently adjust pressure release, bypassing the automated system for enhanced flexibility and reliability in hyperbaric operations.

  • External Intercom

    Seamless communication at all times. Maintain a clear, open voice connection with the chamber user, featuring adjustable volume for optimal clarity and control.

  • Emergency Stop Button

    Immediate safety control. Instantly halt the session and rapidly reduce chamber pressure to a safe level in case of emergency.

  • Power On Switch

    Activate your hyperbaric system. Turn on the electrical equipment to power the control panels for both manual and automated HBOT sessions.

  • Emergency Decompression Valve

    Rapid pressure relief when needed. Manually release chamber pressure in an emergency by rotating the spherical valve from inside or outside.

  • USB Port

    Effortless data management. Use the USB 3.0 port to update software, upload custom settings, or download session archives with ease.
